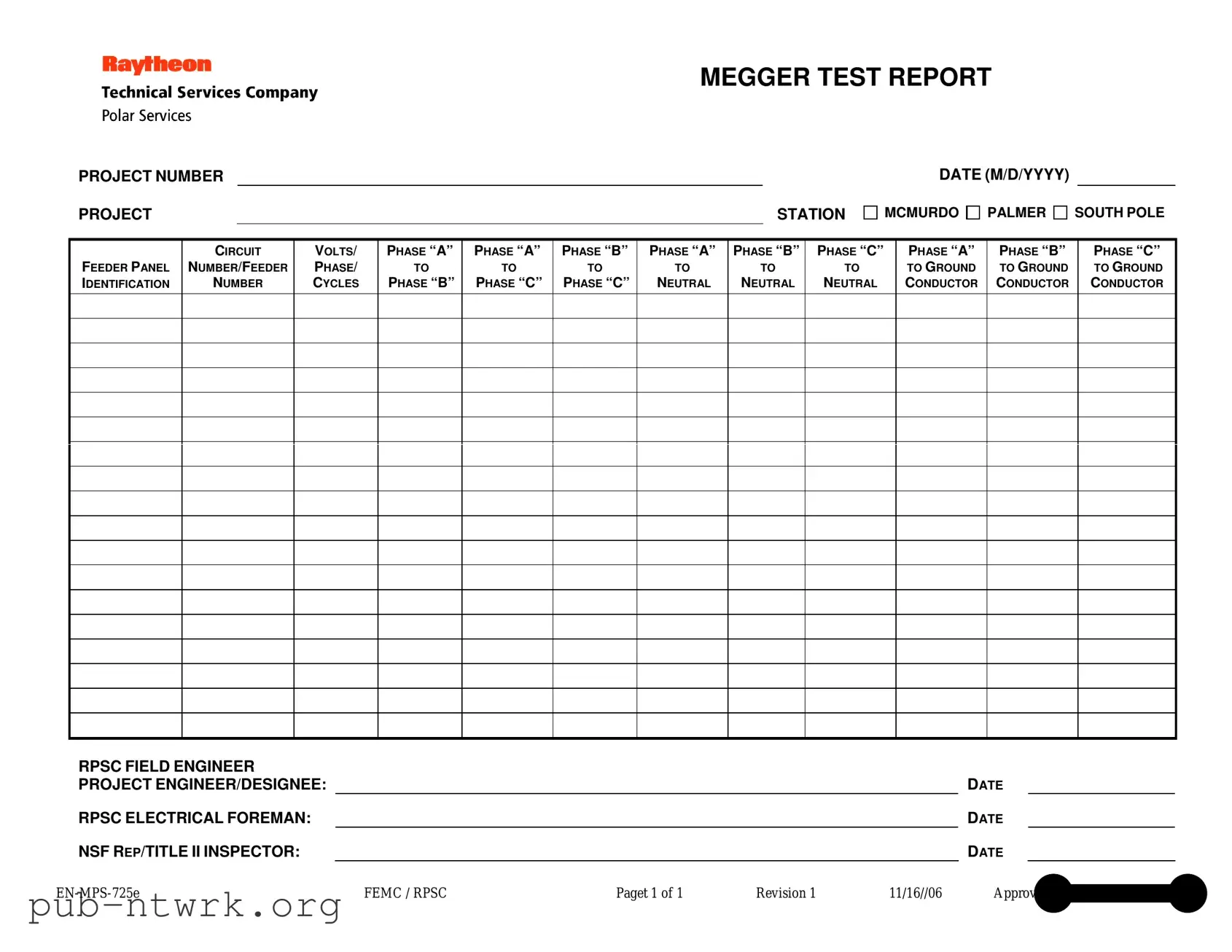

MEGGER TEST REPORT

PROJECT NUMBER

PROJECT



STATION

DATE (M/D/YYYY)

MCMURDO PALMER SOUTH POLE

FEEDER PANEL IDENTIFICATION

CIRCUIT

NUMBER/FEEDER

NUMBER

VOLTS/

PHASE/

CYCLES

PHASE “A”

TO

PHASE “B”

PHASE “A”

TO

PHASE “C”

PHASE “B”

TO

PHASE “C”

PHASE “A”

TO

NEUTRAL

PHASE “B”

TO

NEUTRAL

PHASE “C”

TO

NEUTRAL

PHASE “A”

TO GROUND CONDUCTOR

PHASE “B”

TO GROUND CONDUCTOR

PHASE “C”

TO GROUND CONDUCTOR

RPSC FIELD ENGINEER













PROJECT ENGINEER/DESIGNEE:









DATE



RPSC ELECTRICAL FOREMAN:









DATE



NSF REP/TITLE II INSPECTOR:









DATE



EN-MPS-725e

FEMC / RPSC

Paget 1 of 1

Revision 1

11/16//06

Approved by Wayne L. Cornell

File Specifics

Fact Name Description
Project Number This unique identifier helps track the specific project associated with the Megger Test.
Project Station Indicates the location of the project, such as McMurdo, Palmer, or South Pole.
Date The date of the test is recorded in the format M/D/YYYY for clarity.
Feeder Panel Identification This section specifies the feeder panel being tested, which is crucial for identifying circuits.
Circuit Number/Feeder Number Each circuit or feeder has a designated number, making it easier to reference in reports.
Voltage and Phase Information Details the voltage levels and phases being tested, including phase-to-phase and phase-to-neutral measurements.
Ground Conductor Tests Tests the integrity of ground conductors, ensuring safety and compliance with electrical standards.
Field Engineer Signature The RPSC Field Engineer signs off on the report, confirming the test was conducted properly.
Project Engineer/Designee Signature Another layer of verification, the project engineer or their designee also signs the report.
Approval Final approval from Wayne L. Cornell indicates that the report meets all necessary standards.

How to Use Megger Test

Filling out the Megger Test form is a straightforward process. Each section of the form requires specific information that reflects the details of the electrical testing performed. After gathering the necessary data, you can proceed to complete the form step by step.

  1. Locate the PROJECT NUMBER field and enter the relevant project number.
  2. In the PROJECT STATION section, select the appropriate station: McMurdo, Palmer, or South Pole.
  3. Fill in the DATE using the format M/D/YYYY.
  4. Identify the FEEDER PANEL IDENTIFICATION and write it in the designated space.
  5. Enter the CIRCUIT NUMBER/FEEDER NUMBER in the next field.
  6. For the VOLTS/PHASE/CYCLES section, provide the necessary voltage, phase, and cycles information.
  7. Complete the measurements for the following pairs, ensuring accuracy:
    • Phase “A” to Phase “B”
    • Phase “A” to Phase “C”
    • Phase “B” to Phase “C”
    • Phase “A” to Neutral
    • Phase “B” to Neutral
    • Phase “C” to Neutral
    • Phase “A” to Ground
    • Phase “B” to Ground
    • Phase “C” to Ground
  8. Identify the RPSC FIELD ENGINEER and write their name in the appropriate space.
  9. In the PROJECT ENGINEER/DESIGNEE section, provide the name and date.
  10. Fill in the RPSC ELECTRICAL FOREMAN section with the foreman’s name and date.
  11. Lastly, complete the NSF REP/TITLE II INSPECTOR section with the inspector's name and date.

Your Questions, Answered

What is a Megger Test?

A Megger Test, also known as insulation resistance testing, measures the electrical insulation of cables and equipment. This test is crucial for ensuring that electrical systems are safe and functioning properly. By applying a high voltage, typically between 250V to 1000V, the test determines the resistance of insulation to prevent electrical leakage, which can lead to failures or hazards.

What information is included in the Megger Test Report?

The Megger Test Report contains several key pieces of information:

  1. Project Number
  2. Project Station
  3. Date of the test
  4. Feeder panel identification
  5. Circuit number or feeder number
  6. Voltage, phase, and cycles
  7. Resistance measurements between various phases and ground
  8. Signatures of the RPSC field engineer, project engineer, electrical foreman, and NSF representative

This comprehensive data helps in evaluating the condition of the electrical system and documenting compliance with safety standards.

How is the Megger Test conducted?

The Megger Test is conducted by following these steps:

  • Disconnect the equipment from the power source to ensure safety.
  • Connect the Megger test leads to the conductors being tested.
  • Select the appropriate test voltage on the Megger device.
  • Activate the Megger to apply the test voltage and record the insulation resistance readings.
  • Repeat the test for each phase and ground connection.

Results are then documented in the Megger Test Report for analysis and record-keeping.

What do the resistance readings indicate?

Resistance readings obtained from the Megger Test indicate the quality of insulation. Generally, higher resistance values suggest better insulation integrity. A resistance value above 1 megohm is typically considered acceptable, while values below this threshold may indicate potential issues. Consistent low readings across tests may require further investigation or maintenance.

Who should perform a Megger Test?

A Megger Test should be performed by qualified personnel, such as electrical engineers or certified technicians. These professionals possess the necessary training and expertise to conduct the test safely and accurately. Proper execution is essential to ensure that the results are reliable and that the equipment is safe for operation.

How often should Megger Tests be performed?

The frequency of Megger Tests depends on several factors, including the type of equipment, environmental conditions, and regulatory requirements. Generally, it is advisable to conduct these tests:

  • Before commissioning new equipment
  • After significant repairs or modifications
  • As part of regular maintenance schedules, typically annually or biannually

Following these guidelines helps ensure the ongoing safety and reliability of electrical systems.

Common mistakes

  1. Failing to include the project number. This information is essential for tracking and reference.

  2. Not specifying the station. Each test must be associated with a specific location.

  3. Incorrectly formatting the date. The required format is M/D/YYYY, and deviations can lead to confusion.

  4. Leaving the feeder panel identification blank. This detail is critical for identifying the circuit being tested.

  5. Omitting the circuit number/feeder number. This number is necessary for proper documentation.

  6. Not recording the voltage information accurately. This includes volts, phase, and cycles.

  7. Failing to complete all phase measurements. Each phase must be tested and documented.

  8. Neglecting to fill in the ground conductor measurements. These are important for safety assessments.

  9. Not signing off by the field engineer and other responsible parties. Signatures confirm the accuracy of the report.

  10. Using an outdated version of the form. Always ensure you are using the most current document for reporting.

Documents used along the form

The Megger Test form is an essential document used to assess the insulation resistance of electrical systems. However, several other forms and documents complement this report, ensuring a comprehensive understanding of the electrical system's condition. Below are six commonly used documents that often accompany the Megger Test form.

  • Inspection Checklist: This document outlines the specific items and areas that need to be inspected before conducting the Megger Test. It ensures that all necessary safety protocols and equipment checks are performed, minimizing risks during testing.
  • Test Plan: A test plan details the objectives, methods, and procedures for conducting the Megger Test. It provides a roadmap for engineers and technicians, ensuring consistency and thoroughness in the testing process.
  • Calibration Certificate: This certificate verifies that the Megger testing device has been calibrated correctly. It confirms the accuracy of the measurements taken during the test, which is crucial for reliable results.
  • Safety Data Sheet (SDS): The SDS provides information about the safe handling and potential hazards of materials used during testing. It is essential for ensuring that all personnel are aware of safety protocols and emergency procedures.
  • Maintenance Log: This log tracks the maintenance and servicing of electrical equipment. It helps identify any recurring issues or necessary repairs, providing context for the results obtained from the Megger Test.
  • Final Report: After conducting the Megger Test and analyzing the results, a final report summarizes the findings. It includes recommendations for repairs or further testing, serving as a critical document for project stakeholders.

Utilizing these documents alongside the Megger Test form enhances the overall testing process. They contribute to a thorough evaluation of the electrical system, ensuring safety and reliability in its operation.

Similar forms

The Megger Test Report shares similarities with the Electrical Inspection Report. Both documents serve the purpose of assessing electrical systems for safety and compliance. The Electrical Inspection Report typically includes details about the electrical installations, including circuits, wiring, and equipment. Like the Megger Test Report, it documents measurements and observations that ensure the system meets regulatory standards. This ensures that any potential issues can be identified and addressed promptly.

Another document that resembles the Megger Test Report is the Circuit Testing Report. This report focuses specifically on testing individual circuits to verify their functionality and safety. It includes measurements similar to those found in the Megger Test, such as voltage levels and phase relationships. Both reports aim to provide a clear overview of electrical performance and help in troubleshooting any anomalies that may arise during operation.

The Equipment Testing Report is also akin to the Megger Test Report. This document is used to verify the performance and safety of specific electrical equipment. It includes test results, operational checks, and any deficiencies noted during testing. Like the Megger Test Report, it emphasizes the importance of maintaining safe operational standards and provides a record that can be referenced in future inspections.

In addition, the Commissioning Report is another document that shares characteristics with the Megger Test Report. Commissioning reports are created to confirm that electrical systems are installed and functioning according to design specifications. They often include test results, system performance data, and compliance checks, similar to the information found in a Megger Test Report. Both documents are essential for ensuring that systems are ready for operation and meet safety standards.

The Maintenance Log can also be compared to the Megger Test Report. While the Maintenance Log tracks ongoing maintenance activities, it often includes test results from various inspections, including Megger tests. This record helps ensure that any issues are documented and addressed over time, contributing to the overall safety and reliability of the electrical system.

Another relevant document is the Safety Inspection Checklist. This checklist is used to ensure that all safety protocols are followed during electrical installations and maintenance. While it may not provide detailed test results, it often references the need for testing, such as Megger testing, to ensure compliance with safety standards. Both documents aim to protect personnel and equipment from electrical hazards.

The Troubleshooting Report also shares some similarities with the Megger Test Report. This document is generated when issues arise within an electrical system and includes detailed observations and test results. Like the Megger Test, it focuses on identifying electrical problems and documenting the steps taken to resolve them. Both reports are crucial in ensuring that electrical systems operate safely and efficiently.

The Compliance Report is another document that aligns with the Megger Test Report. Compliance reports are created to demonstrate adherence to local, state, and federal electrical codes. They often include test results, including those from Megger tests, to validate that systems meet required standards. Both documents play a vital role in maintaining regulatory compliance and ensuring public safety.

Finally, the Final Inspection Report is similar to the Megger Test Report in that it summarizes the findings of a final review of electrical systems before they are put into service. This report includes various tests and inspections, including those conducted with a Megger. It serves as a conclusive record that ensures all systems are safe and functioning correctly before being handed over for operational use.

Dos and Don'ts

When filling out the Megger Test form, attention to detail is crucial. Here’s a guide on what to do and what to avoid:

  • Do ensure that the project number is clearly written at the top of the form.
  • Do fill in the project station accurately, selecting from the provided options: McMurdo, Palmer, or South Pole.
  • Do use the correct date format (M/D/YYYY) to avoid confusion.
  • Do identify the feeder panel correctly to ensure accurate documentation.
  • Do double-check all voltage and phase readings before submitting the form.
  • Do include the names and dates for all required personnel, such as the RPSC field engineer and the electrical foreman.
  • Don’t leave any sections blank; incomplete forms can lead to delays.
  • Don’t use abbreviations or shorthand that may not be universally understood.
  • Don’t forget to sign and date the form to validate the information provided.

Following these guidelines will help ensure that the Megger Test form is completed accurately and efficiently.

Misconceptions

Misconceptions about the Megger Test can lead to confusion and improper application of this important electrical testing method. Here are five common misconceptions:

  • The Megger Test is only for insulation testing. While the Megger Test is primarily used to assess insulation resistance, it can also provide valuable information about the overall health of electrical systems, including the condition of cables and connections.
  • Results from a Megger Test are always definitive. The results can vary based on environmental conditions, such as temperature and humidity. Therefore, it is essential to interpret the results in context and consider factors that may influence the readings.
  • Only qualified electricians can perform a Megger Test. While it is highly recommended that trained professionals conduct the test, individuals with a basic understanding of electrical systems can also perform it, provided they follow safety protocols and guidelines.
  • The Megger Test is dangerous and should be avoided. Although the test involves high voltage, when performed correctly and with the appropriate safety measures, it is safe. Proper training and equipment are crucial to minimize any risks.
  • All Megger Test devices are the same. Different Megger Test devices have varying features and capabilities. Users should select a device that meets their specific testing needs, as some models may offer advanced functionalities that others do not.

Key takeaways

Filling out the Megger Test form is essential for ensuring accurate electrical testing. Here are some key takeaways to keep in mind:

  • Project Information: Always start by clearly entering the project number, project station, and date. This helps in tracking and referencing the test later.
  • Identification: Make sure to identify the feeder panel and circuit number correctly. This information is crucial for understanding the specific setup being tested.
  • Voltage and Phase Details: Record the voltage, phase, and cycles accurately. This data is necessary for evaluating the performance of the electrical system.
  • Testing Phases: Fill in the results for each phase-to-phase and phase-to-neutral test. Each reading provides insights into the system's integrity.
  • Signatures: Ensure that the RPSC field engineer, project engineer/designee, electrical foreman, and NSF representative all sign and date the form. Their approval is vital for validation.
  • Documentation: Keep a copy of the completed form for your records. This documentation can be useful for future reference or inspections.
